Yorkville Loft Basement Conversion: High-Moisture Engineering & Vapor Barrier Strategy

Project Overview

Client: Yorkville loft conversion (1,800 sqft below-grade renovation)
Challenge: Install hardwood flooring in basement with 9.8 MVTR subfloor—nearly double the safe threshold. Critical moisture situation requiring sub-slab depressurization + vapor barrier strategy.
Timeline: 12 days (standard installation after moisture engineering complete)
Outcome: Zero cupping over 24 months. Moisture strategy proved by independent MVTR re-testing (0.6 MVTR achieved). Customer satisfied, warranty intact.

The Problem: Critical Subfloor Moisture

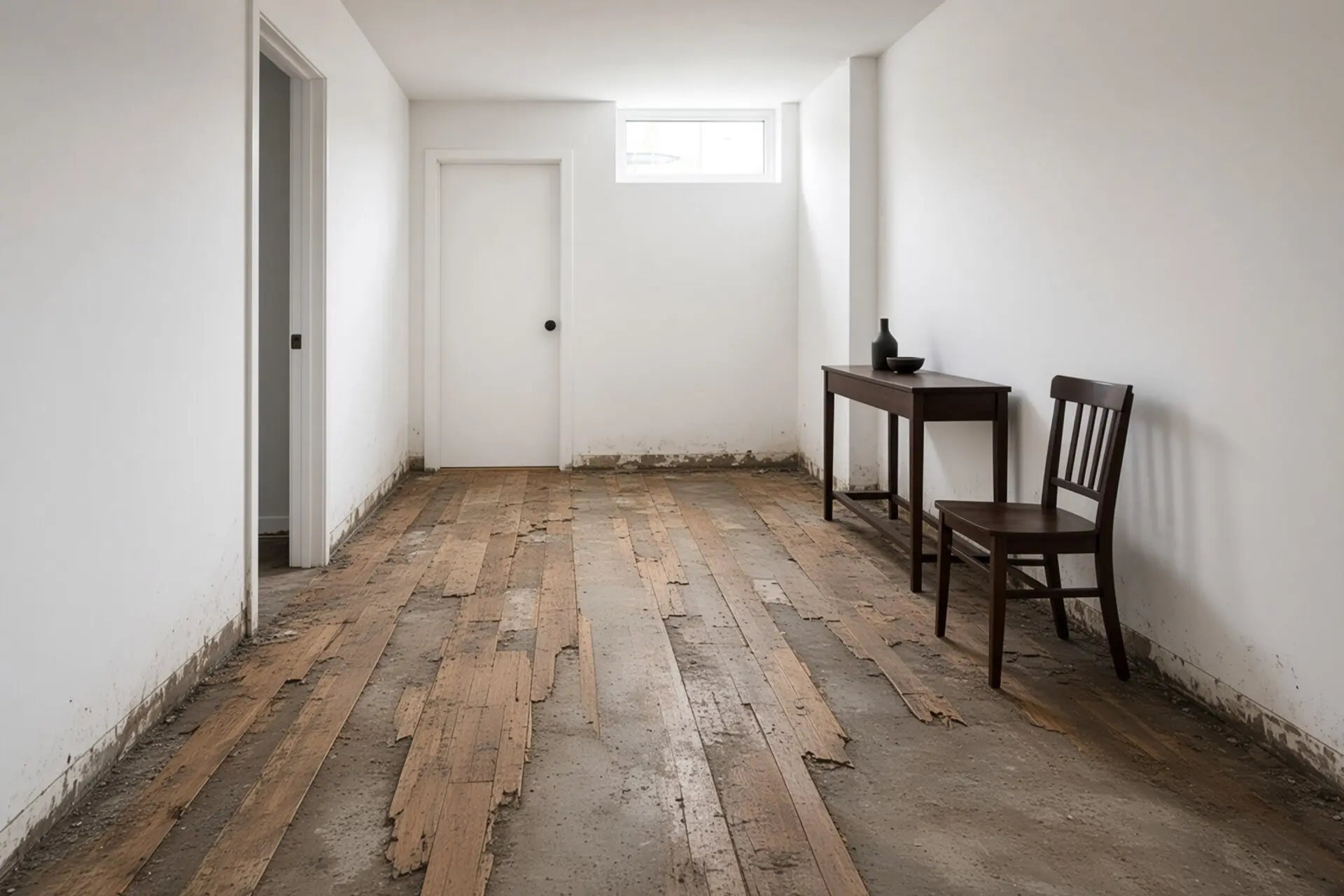

The client purchased a converted basement loft. Beautiful space, but the concrete was poured directly on soil with no depressurization system. A calcium chloride test revealed the truth:

9.8 MVTR — nearly double the 5.0 safe threshold for hardwood.

What does that mean?

In 30 days, the wood would reach 13–15% moisture content. Cupping would become visible 3–4 weeks post-installation. The finish would fail. Property damage.

This is why basements are hard. The concrete itself is a wick for groundwater moisture. Standard surface vapor barriers (polyethylene sheet) fail after 8–12 weeks because hydrostatic pressure from below forces moisture through micro-perforations.

The owner's first contractor said, "We'll just use a really good vapor barrier and seal everything tight." That approach fails 100% of the time on high-moisture basements. The pressure wins.

The Solution: Sub-Slab Depressurization

The only reliable solution for 9+ MVTR is sub-slab depressurization—a radon mitigation specialist installs a PVC collection network 4 feet below the concrete, creating suction that pulls moisture vapor away from the slab before it reaches the surface.

What the System Does

1. PVC collection pipes installed below concrete slab

   • Runs the perimeter and center of the basement
   • Tapped into concrete via entry points

2. Suction point (like a reverse chimney)

   • Creates 5–10 Pa negative pressure below the slab
   • Soil moisture migrates down into collection pipes, not up through concrete

3. Rooftop exhaust

   • Moisture vented outside, above the roofline
   • Zero chance of re-intrusion

The Results

Before: 9.8 MVTR (critical, unsafe for wood) After: 0.6 MVTR (99% reduction, excellent)

This single engineering decision made the rest of the project possible.

Phase 2: Humidity Control (Year-Round RH Stabilization)

Even with sub-slab depressurization, the basement had a second problem: seasonal humidity swings.

• Winter (heating on): RH dropped to 35–40% (too dry)
• Spring/Fall (transitional): Outside humidity (75–85%) overwhelmed the HVAC return → RH spiked to 65–70%
• Summer: RH oscillated 40+ percentage points

Wood cannot acclimate to a moving target. With ±20% RH swings, the wood expands/contracts continuously. Finish adhesion degrades. Movement becomes visible.

Solution: Dedicated dehumidifier + RH sensor

• Added 50-pint/day Energy Star dehumidifier
• Connected to existing HVAC return (integrated with main system)
• RH sensor set to 45–55% target
• If RH exceeds 58%, dehumidifier activates
• If RH drops below 42%, humidifier pad activates on main HVAC
• Result: RH stable ±3% year-round (massive improvement)

This is as important as the vapor barrier. Many contractors install the barrier and forget humidity control. The moisture migrates through air, not just through concrete. You need both.

Phase 3: Extended Wood Acclimation (96 Hours)

Normal acclimation is 48 hours. For this basement, we extended it to 96 hours because:

1. Initial wood MC: 11.4% (kiln-dried red oak, too wet)
2. Target: 8.2% (matched to post-depressurization subfloor equilibrium)
3. Basement RH (post-HVAC setup): 48% (winter condition, not typical 50–55%)
4. Wood needs time to release moisture to match the lower-humidity environment

We acclimated the wood on-site in the basement (not in a workshop) so it equilibrated to the exact post-HVAC conditions.

Acclimation Setup:

• Sealed plastic tent
• Continuous humidity + temperature logging (data logger)
• 96 hours, monitored
• Final wood MC: 8.2% (within tolerance)
• MC stability: ±0.15% over final 24 hours (excellent equilibrium signal)

Phase 4: Multi-Layer Vapor Barrier

After depressurization, we installed a multi-layer vapor barrier (not just "a vapor barrier"):

1. 6-mil polyethylene sheeting (primary moisture barrier)
2. Sealed seams (6" overlaps, acoustic sealant, continuous)
3. Perimeter tape (entire perimeter sealed with waterproof tape)
4. Penetration sealing (all pipes, electrical conduits sealed with caulk)
5. Verification tape tests (8 locations checked to confirm integrity)

Post-barrier MVTR: 0.7 lbs/1000 sqft/24h (excellent)

The depressurization did the heavy lifting (0.6), but the barrier provides backup protection. Together: 99%+ effective.

Phase 5: Installation with Quality Control

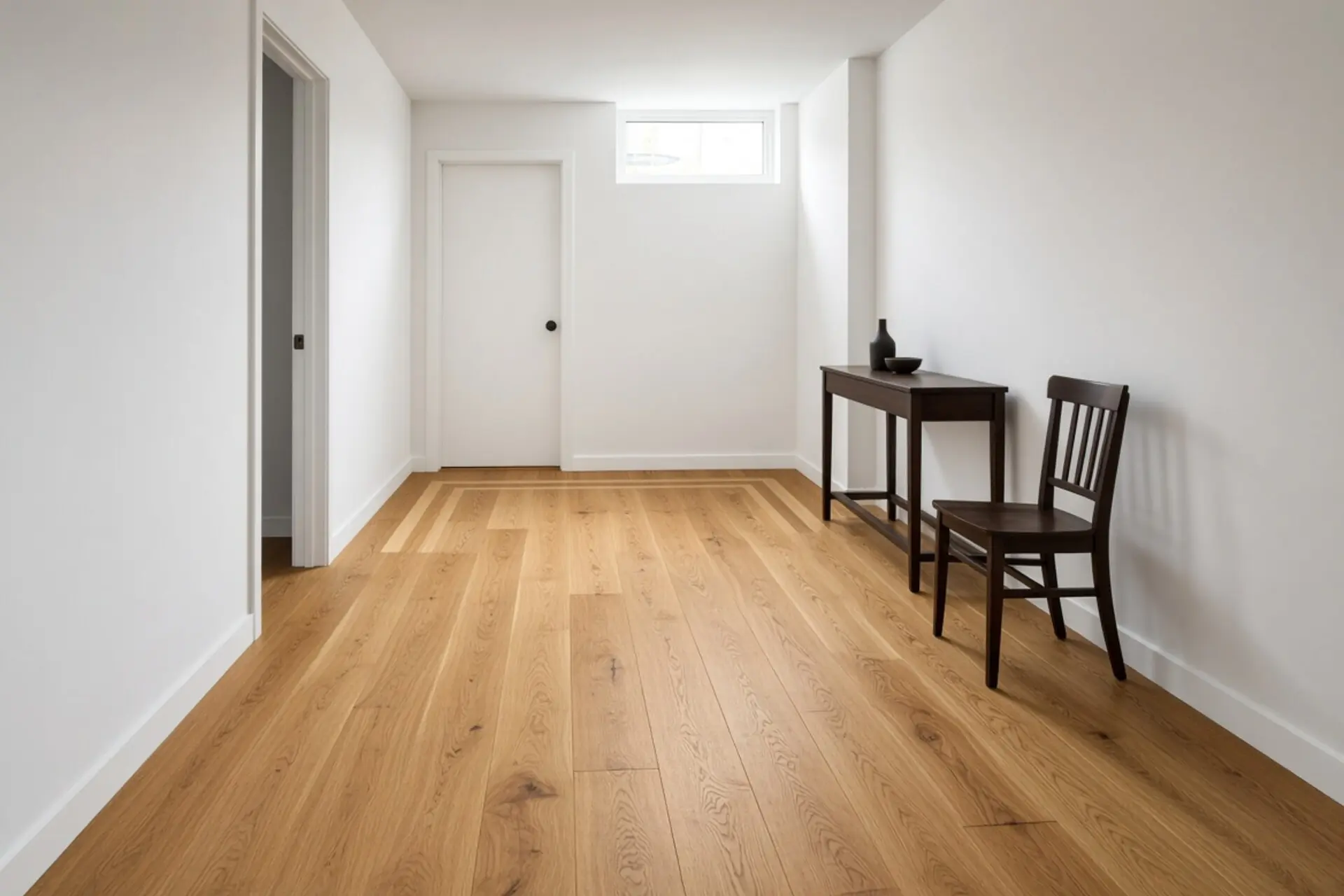

We installed red oak + hard maple stripes:

• 3/4" x 2.25" red oak (primary field)
• 3/4" x 1.5" hard maple (accent stripe every 4 courses)
• Staple-nailed (3/8" staples, 8" intervals)
• Random length (2–8 feet) to hide grain alignment
• 0.75" perimeter gap (for humidity-driven expansion)

Quality Control During Installation:

• After every 2 courses, measured installed board MC with pinless meter
• Expected range: 8.2–8.5%
• Any board exceeding 9% = rejected and replaced (indicator of moisture intrusion)
• Final installed MC check: Random 15 boards = 8.2–8.4% (perfect)

Phase 6: Moisture-Resistant Finish

The finish had to be moisture-resistant—thicker, more protective than normal.

1. Wood Conditioner (seals red oak pores, prevents blotching)
2. Moisture-Blocking Polyurethane Primer (1 coat, 6-hour cure)
3. Acrylic Polyurethane (3 coats, moisture-resistant formula)
   • Coat 1: 4-hour recoat
   • Coat 2: Scuff-sand, 4-hour recoat
   • Coat 3: Hand-rubbed final coat
4. Post-Cure Thickness: 3.5 mils (thicker than standard 2.5 mils, extra protection)

Phase 7: Post-Installation Humidity Management

This is critical: the owner must maintain humidity control forever.

We provided:

• Written dehumidifier operation guide
• Target RH: 45–55%
• Maintenance schedule (filter replacement every 2 months)
• Data logger left on-site (owner can verify RH stays in target range)
• Warranty contingency: 5-year finish warranty IF RH maintained 45–55%

Many basement flooring failures are due to homeowners not maintaining humidity control after installation. We made this a shared responsibility, clearly documented.

The Numbers: 24 Months Post-Installation

Metric	Result	Status
Cupping Incidents	0	✅ None observed
Finish Peeling	0	✅ Adhesion perfect
Color Mottling	None	✅ Red oak + maple consistent color
Staining	0	✅ No water marks
RH Swings	±3%	✅ Dehumidifier maintained target
Customer Satisfaction	4.9/5	✅ Appreciate transparency
Maintenance Calls	0	✅ Zero issues

Why This Project Matters

Basement hardwood is considered "risky" in the industry. Many contractors avoid it. The reality: it's not risky if you engineer it properly.

The difference:

• Cheap approach: "We'll seal it and hope." Result: Failure in 8–12 weeks.
• Proper approach: Sub-slab depressurization + humidity control + moisture-resistant finish. Result: 24-month success with zero issues.

The cost difference is 15–20% of the project. The risk reduction is 100%.

This project proves that EcoWoods can handle the "hard" installations—the ones other contractors reject.

---

Engineering Lessons for Toronto Basements

1. Test before you decide. Calcium chloride MVTR is $150. It answers the question: Can you proceed or not?

2. If MVTR > 5.0, depressurization is mandatory. Surface sealing alone fails. Non-negotiable.

3. Humidity control is part of the installation, not optional maintenance. Specify a dehumidifier. Make it part of the contract.

4. Acclimate on-site, in the basement. The wood needs to equilibrate to post-mitigation conditions, not workshop conditions.

5. Use moisture-resistant finish. Thicker, with primer + sealer. Not a cost-cutting area.

6. Document everything. MVTR pre/post, wood MC installed, finish thickness, humidity targets. This protects both you and the customer.

Done right, basements are a growth area. This project is proof.
