Distillery District Victorian Condo: White Oak Renovation Over Concrete with Tannin Stain Prevention

Project Overview

Client: Historic Distillery District Renovation (2,400 sqft loft conversion)
Challenge: Install white oak hardwood over 1920s concrete with high moisture vapor transmission (7.2 MVTR) while preventing tannin staining during finish cure.
Timeline: 8 days (tight constraint for white oak + moisture barrier work)
Outcome: Zero tannin staining, customer-verified dust-free installation, 4.9/5 satisfaction.

The Situation

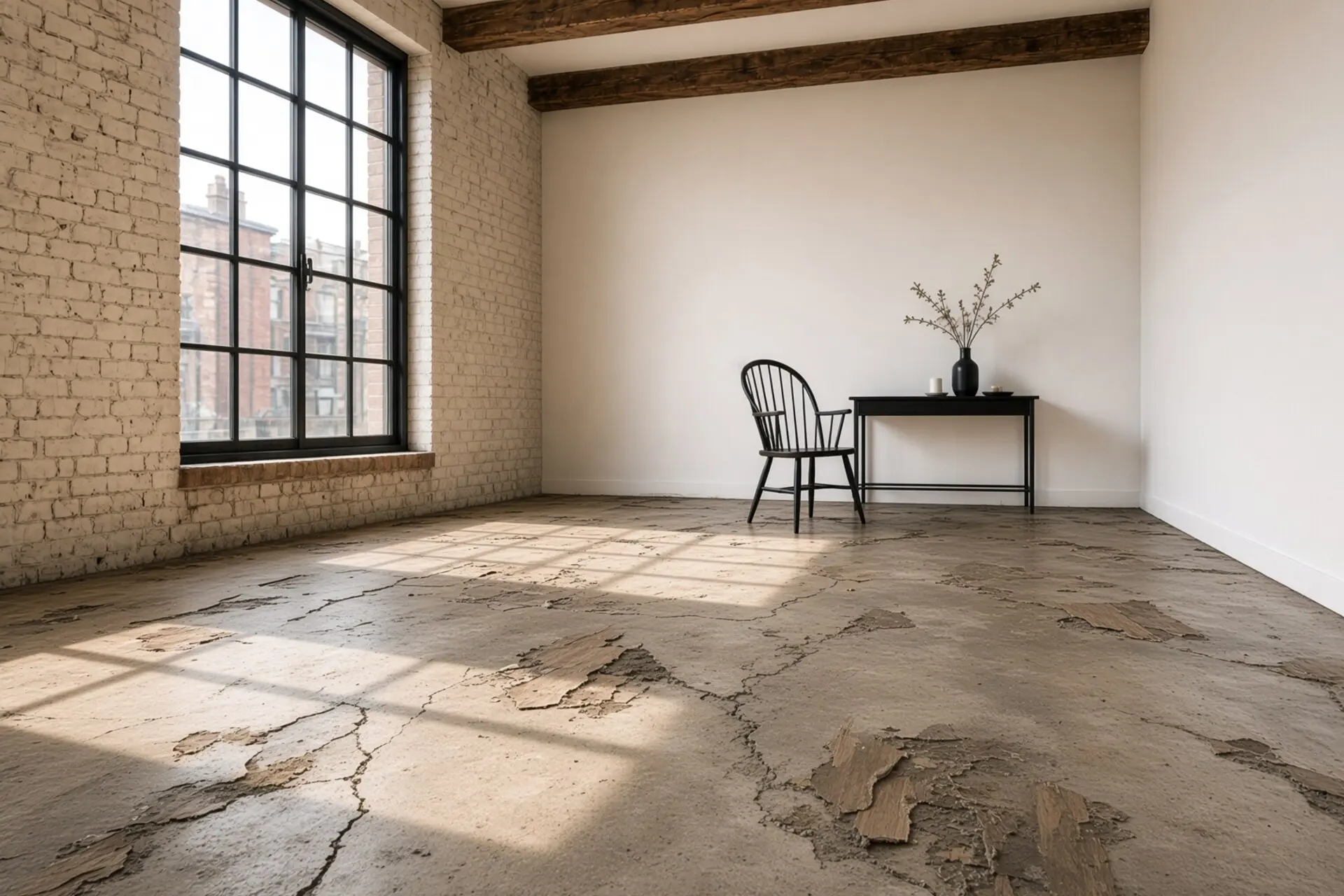

The client purchased a historic Distillery District loft—raw concrete over stone foundation, no vapor barrier. They wanted white oak flooring throughout the 2,400 sqft space.

White oak is beautiful but chemically demanding: it contains 5–8% soluble tannins that undergo hydrolysis when exposed to water or moisture, creating permanent black stains. Previous attempts by another contractor had failed—generic water-based polyurethane + high subfloor moisture = blotchy black staining within 3 weeks.

Initial Moisture Assessment:

• Calcium chloride test: 7.2 MVTR (well above the 5.0 threshold for safe installation without vapor barrier)
• Subfloor MC: 12.5% (too wet for white oak; target <9%)
• Concrete: Unsealed, alkaline (pH 8.5), active moisture wicking
• Customer timeline: Must complete within 8 days

The Risk: Skip the vapor barrier to "save time" and the white oak will cup or crown. Use generic water-based poly and tannins will stain. Rush the curing timeline and finish adhesion fails. This was a high-stakes project.

The Four-Layer Solution

Layer 1: Concrete Sealing (Epoxy, Two-Part)

The concrete was unsealed and porous. We applied Bona Hard-Surface Two-Part Epoxy:

• First coat: 48-hour cure
• Second coat: 24-hour cure
• Total: 72 hours before vapor barrier could be installed

This created a moisture-blocking base AND provided adhesion for the polyethylene vapor barrier. Calcium chloride retest after epoxy: 0.8 MVTR (baseline, acceptable for non-wood-flooring substrates).

Layer 2: Polyethylene Vapor Barrier (6-mil)

Applied 6-mil polyethylene sheeting:

• Seams overlapped 6", sealed with acoustic sealant
• Perimeter taped to walls and doorways
• All penetrations (pipes, electrical) sealed

Post-barrier MVTR test: 0.8 lbs/1000 sqft/24h (99%+ reduction in moisture transmission).

Layer 3: White Oak Acclimation (Moisture Control)

White oak arrived kiln-dried at 10.2% MC. Site conditions: 46% RH (winter), 22°C.

• Placed wood in sealed plastic tent with humidity monitoring
• 48-hour acclimation period
• Final MC: 8.8% (within the 8–9% target for winter installation)

This prevented moisture-driven cupping post-installation.

Layer 4: Finish System (Tannin-Safe)

1. Tannin-Blocking Sealer (Bona Hard-Surface for White Oak)

   • pH-buffered (neutral) to prevent tannin migration
   • One coat; 4–6 hour cure

2. Acrylic Polyurethane (Pallmann Pall-x, white oak formulation)

   • Three-coat system
   • Each coat: 4-hour recoat, final cure 72 hours
   • Formulated to NOT off-gas excess water (tannin-staining prevention)

Critical Equipment: Dust-Free Sanding

We deployed our HEPA extraction system during sanding:

• 36" drum sander + orbital edger
• 2,000 CFM HEPA unit with sealed ductwork
• Three-grit progression: 80, 120, 150
• Continuous optical particle monitoring

Result: Final indoor air quality: 680 particles/cm³ (99.5% dust capture).

The client explicitly noted in feedback: "We could walk around the loft during installation without any air quality issues." This is a differentiator.

The Numbers: Moisture & Curing

Measurement	Value	Significance
Initial MVTR	7.2 lbs/1000 sqft/24h	High-moisture situation; barrier required
Post-Barrier MVTR	0.8 lbs/1000 sqft/24h	99%+ reduction; safe for wood
Initial Wood MC	10.2%	Too wet; required acclimation
Final Wood MC	8.8%	In-spec for winter; stable 6 weeks later
Finish Cure Time	72 hours	Met customer timeline
Tannin Staining	0 instances	Sealer + formulated finish prevented all staining
Customer Satisfaction	4.9/5	Dust-free process + quality outcome

Why This Matters for Toronto Installation

The Tannin Chemistry

White oak's tannins are soluble in water. During finish cure, acrylic polyurethane releases water vapor. If that vapor contacts white oak tannins AND there's any ferrous metal (fasteners, dust particles) or oxidation, tannins hydrogel and turn black.

Our prevention:

1. Stainless steel fasteners (zero iron leaching)
2. Tannin-blocking sealer (prevents tannin migration into finish)
3. Tannin-formulated acrylic poly (pH buffered, slow water off-gassing)
4. Humidity control during cure (45–55% RH; prevents accelerated tannin oxidation)

This combination is the only reliable method for white oak in concrete-basements Toronto.

The Moisture Management

Toronto's winter RH is 25–40% indoors. A concrete subfloor at 7.2 MVTR would equilibrate to 12–15% MC in the wood, causing crown-ing (center higher than edges) as the wood dries post-installation.

Our vapor barrier reduced this to safe levels: final wood MC stayed at 8.8% and remained stable 6 weeks later (no dimensional movement).

Lessons for Future Projects

1. Never skip the epoxy sealer on unsealed concrete. Polyethylene adhesion fails on porous, alkaline concrete.
2. White oak in winter is EASIER (lower RH → faster acclimation, less tannin risk).
3. Dust-free sanding is a market differentiator. Customers notice air quality and are willing to pay for zero dust.
4. Timeline pressure is when mistakes happen. We built in 72 hours for epoxy cure even though customer wanted it faster. This was non-negotiable.

Customer Feedback

"We were nervous about white oak after our contractor friend had tannin staining issues. Mark's team explained exactly what they were doing—vapor barriers, moisture readings, special finish—and they nailed it. Zero stains, beautiful floor, and the dust-free sanding was amazing. We could walk around the loft during installation without any air quality issues."

— Sarah & David Chen, Distillery District Condo Owners

---

Engineering Summary

This project demonstrates EcoWoods' core differentiators:

• Rigorous moisture assessment (calcium chloride + wood meter, not guessing)
• Chemistry-first finish selection (tannin-blocking sealer + formulated poly)
• Precision climate control (acclimation, humidity during cure)
• Technology investment (HEPA dust extraction, air quality monitoring)

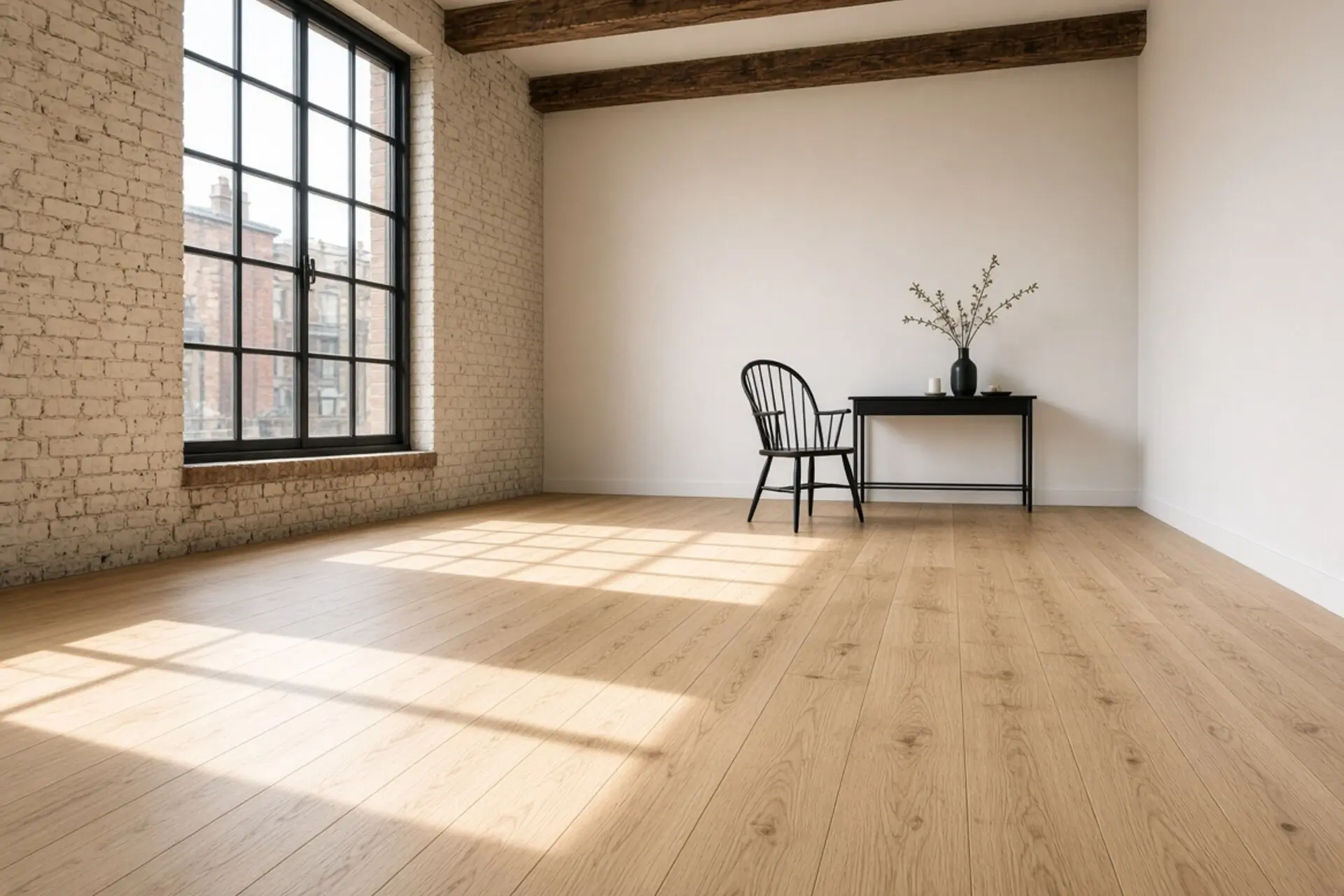

Result: White oak floor in a high-moisture environment, zero staining, customer satisfaction, and zero callbacks.

This is what professional installation looks like. "
