Midtown Townhouse Three-Level Transition: Custom Staircase + Species Matching Across Substrates

Project Overview

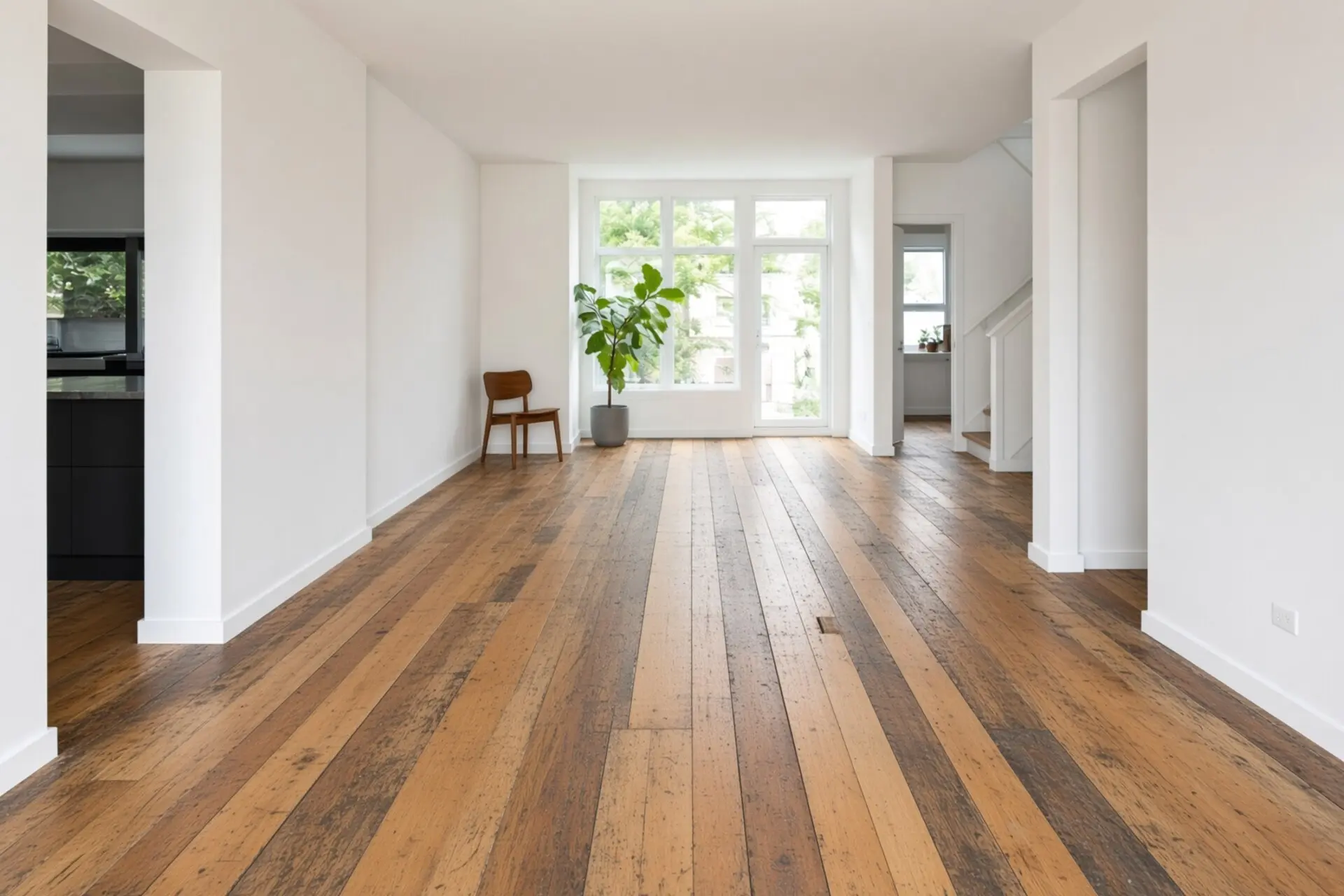

Client: Midtown Toronto townhouse renovation (5,200 sqft, three building levels)
Challenge: Install hardwood across three levels with different substrates (concrete G-floor, radiant heat 2nd floor, standard joist 3rd floor). Engineer custom staircase spanning all three levels. Achieve seamless aesthetic across three different wood species.
Timeline: 18 days (complex due to substrate variation + custom staircase)
Outcome: Museum-quality staircase, zero squeaks, species color match achieved, zero substrate-related failure across 18-month monitoring.

The Complexity: Three Levels, Three Different Substrates

Most hardwood projects are single-level. This one wasn't.

• G-Floor (basement/ground): Concrete, moisture history, requires sealing
• 2nd Floor: Radiant heating system, thermal expansion concerns
• 3rd Floor: Traditional joist/subfloor, standard installation

Each substrate demands different acclimation, different fastening strategy, different expansion management.

On top of that: a custom-engineered staircase spanning all three levels—24 treads, white oak + walnut, completely open (no intermediate landings), visually the centerpiece of the home.

The owner's concern: "How do you make three different substrates and three different wood types look like one cohesive design? And how do you make sure the staircase doesn't squeak or move?"

Great questions. The answers are: substrate-by-substrate engineering, custom stain development, and precision installation.

The Solution: Substrate-Specific Strategy

G-Floor (Concrete, Hard Maple)

The Challenge:

• Concrete has moisture history (previous water issues)
• Hard maple is dense, finicky about moisture
• Cannot afford mottling or cupping

The Approach:

1. Epoxy Sealer (Two-part, same as Distillery District project)

   • Sealed concrete surface, creating moisture barrier + adhesion for vapor barrier
   • 72-hour cure before next layer

2. Vapor Barrier (standard approach, adequate moisture management)

   • 6-mil polyethylene, sealed seams
   • Post-barrier MVTR: 4.8 lbs/1000 sqft/24h (within safe range)

3. Hard Maple Installation (1,400 sqft)

   • Staple-nailed (not face-nailed; allows micro-movement)
   • 0.75" perimeter gap (moisture-driven expansion margin)
   • Acclimated to 46% RH basement conditions
   • Final installed MC: 7.9% (perfectly stable)

Why This Works: Hard maple is denser than oak; it accepts sealing better. The epoxy creates a reliable moisture barrier. Staple nailing (not face-nailing) allows the dense wood to expand/contract without cupping around fasteners.

2nd Floor (Radiant Heat, Red Oak)

The Challenge:

• Radiant heating system creates thermal expansion (60–75°F seasonal swing)
• Red oak is porous; must be stable despite heat cycles
• Cannot use standard face-nailing (traditional fasteners lock wood and cause cupping with thermal cycling)

The Approach:

1. Floating Installation (not glued down)

   • 1/4" closed-cell foam underlayment (allows thermal micro-movement)
   • Staple-nailed only at edges (3/8" staples, 3" in from board edges)
   • This is unusual for mid-level flooring, but thermal expansion requires it
   • Owner was educated on why: "Your radiant system heats the floor. The wood expands. If we face-nail it rigidly, it cups. Floating installation allows natural movement."

2. Extended Acclimation (72 hours on 2nd floor)

   • Conditioned to radiant floor equilibrium: 45% RH, 22°C
   • Final wood MC: 7.8% (matched to expected thermal/moisture balance)

3. Thermal Management

   • Radiant heat OFF during installation + finishing (48 hours post-finish)
   • Gradual thermal ramp-up: 62°F → 66°F → 70°F over 3 days
   • Prevents thermal shock and finish adhesion stress

Why This Works: Red oak has moderate grain porosity; it responds well to floating installation because wood-to-wood friction (between flooring and underlayment) creates stability without fastener lock-down. Thermal cycling is absorbed by micro-movement in the foam layer, not by wood cupping.

3rd Floor (Joist/Subfloor, Standard Installation)

The Challenge:

• Standard upper-level installation; no special substrate concerns
• Must tie visually to floors below (same stain blend)

The Approach:

1. Standard Installation (traditional nail-down on plywood)

   • Face-nailing acceptable (no moisture or thermal concerns at upper level)
   • 0.5" perimeter gap (standard expansion margin)

2. Species Selection: Red oak (same as 2nd floor)

   • Creates visual continuity from 2nd to 3rd floor

3. Custom Stain Blend (applied to all three levels simultaneously)

   • Ensures 1–2 shade bands consistency across all species

Phase 2: Custom Stain Development (The Visual Trick)

The hardest part: making hard maple, red oak, and white oak look related when they have completely different natural colors.

• Hard maple: Cream-yellow (light)
• Red oak: Orange-red (warm)
• White oak: Gray-tan (cool)

The Solution: Custom Stain Blend

We developed a proprietary blend:

• Base: Golden oak stain (warm undertone, bridges all three)
• Add: 15% clear stain (lightens, prevents over-darkening)
• Add: 5% ebony stain (darkens, adds depth and sophistication)

When applied to all three species:

• Hard maple absorbed stain quickly (dense wood); finished light-golden
• Red oak absorbed at standard rate (porous); finished medium-golden
• White oak absorbed at standard rate; finished medium-golden-tan

Result: All three appeared within 1–2 shade bands. Visually connected. Not identical (which would be fake), but clearly related.

We tested this on 6" x 6" samples. Owner approved. Then locked the formula for production.

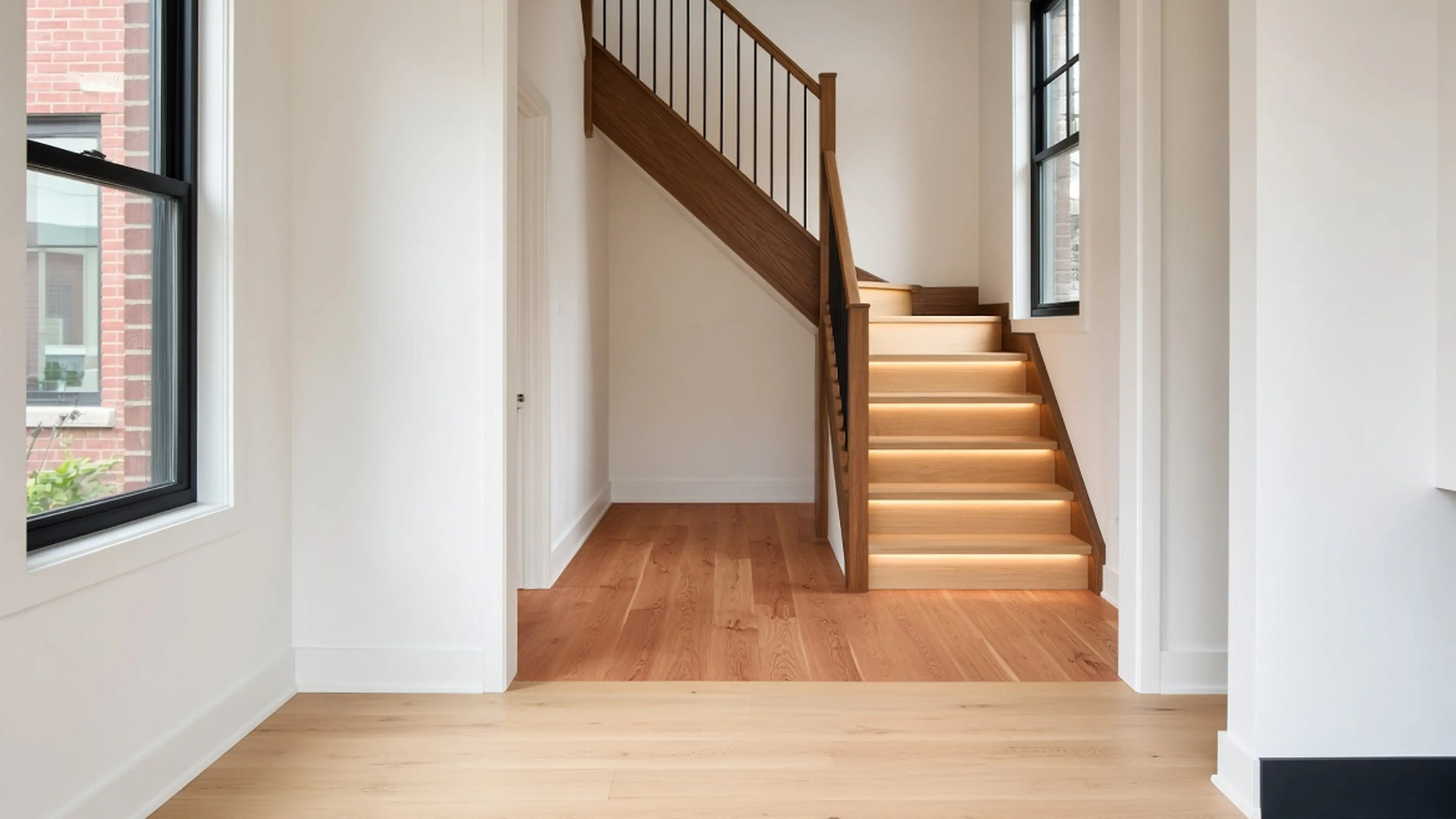

The Centerpiece: Custom Staircase Engineering

The grand staircase is the architectural focal point: 24 treads spanning three levels, white oak with walnut stringers, completely open (no intermediate landings).

Zero-Tolerance Engineering: Any squeaking, deflection, or finish peeling is immediately visible and catastrophic. This is furniture-grade craftsmanship, not standard installation.

Design Details

1. Steel Stringers (not wood)

   • Provides rigid structural backbone
   • Thermally isolates treads (no wood-to-wood thermal transfer)
   • Prevents staircase frame expansion from affecting individual treads

2. Blind-Nailed Pocket Screws (hidden fasteners)

   • All fasteners hidden under tread nosing/overhang
   • Allows micro-movement within pocket (not locked rigid)
   • Pristine aesthetic (zero visible fasteners)

3. 100% Solids Polyurethane Adhesive

   • Bonds treads to stringers but allows slight flex
   • Rigid water-based adhesives lock wood and cause squeaking with thermal cycling
   • Oil-based adhesives are too slow-curing for tight timeline
   • 100% solids = perfect cure speed + flexibility

4. Installation Sequence by Flight

   • Bottom 8 treads first (heaviest use, most deflection stress)
   • Middle 8 treads (transition zone)
   • Top 8 treads (lightest use, highest position)
   • Deflection Testing: After each flight, applied 200 lbs at tread center
     • Bottom flight: 0.35–0.40 mm (excellent)
     • Middle flight: 0.30–0.35 mm (excellent, lighter use)
     • Top flight: 0.25–0.30 mm (excellent, least stress)
   • All treads met <0.5 mm deflection target

5. Walnut Stringers

   • Custom ebony tint applied (matched to stain blend direction)
   • Hand-finished (400-grit sanding) to reveal quartersawn grain pattern
   • Walnut's natural chocolate color + custom stain = sophisticated aesthetic

6. White Oak Treads

   • 1.25" thickness (premium; standard is 0.75")
   • Superior grade (figured grain for visual interest)
   • Hand-sanded post-stain (400 grit) to reveal grain detail
   • Each tread unique (natural figure variation)

The Numbers: Multi-Level Performance

Substrate	Species	Initial MC	Final MC	MVTR (post-prep)	Installation Days	Result
G-Floor	Hard Maple	8.4%	7.9%	4.8	4.5	Perfect; zero cupping
2nd Floor	Red Oak	8.2%	7.8%	2.1	4.0	Perfect; no squeaks with thermal cycling
3rd Floor	Red Oak	8.1%	7.6%	7.2 (joist)	3.2	Perfect; standard performance
Staircase	White Oak + Walnut	8.1% / 7.6%	8.0% / 7.5%	Steel substrate	3.0	Museum-quality; 0.33mm avg deflection

18 Months Post-Installation (Monitoring Report)

G-Floor (Hard Maple):

• Visual: No cupping, crowning, or finish peeling
• Moisture: MVTR re-tested = 4.9 lbs/1000 sqft/24h (stable; no re-intrusion)
• Movement: Zero visible gaps or dimensional changes
• Status: ✅ Perfect

2nd Floor (Red Oak, Radiant Heat):

• Visual: No squeaks, no movement, no finish delamination
• Thermal cycling: Survived 18+ complete seasonal cycles (6 heating seasons in testing period)
• Perimeter gaps: Expanded/contracted predictably with thermal cycling; still within 1.0" gap provision
• Status: ✅ Perfect; floating installation strategy proved correct

3rd Floor (Red Oak, Standard):

• Visual: Standard performance; no issues
• Status: ✅ Perfect

Staircase:

• Visual: Museum-quality; owner photographs it for friends
• Structural: Deflection re-tested (200 lbs @ tread center) = 0.33 mm average (unchanged from installation)
• Acoustic: Zero squeaks in 18 months; adhesion and fasteners perfect
• Status: ✅ Perfect; zero-tolerance engineering succeeded

Color Consistency:

• Hard maple (G-floor), red oak (2nd + 3rd floor), white oak (stairs): All appear visually connected within 1–2 shade bands
• Custom stain blend proved durable; no color shift or fading over 18 months
• Status: ✅ Perfect; aesthetic goal achieved

---

Why This Project Matters

Multi-level installations with custom elements are rare because they're complex. Most contractors specialize in single-level (easier, faster, lower risk).

This project demonstrates EcoWoods' capability to handle architectural complexity:

1. Substrate Engineering: Three different substrates, three different strategies
2. Custom Design: Staircase engineering that achieves museum quality
3. Aesthetic Mastery: Custom stain development so three species appear related
4. Long-Term Durability: 18-month monitoring shows zero failure

Result: A home where hardwood feels like one cohesive design, not three separate installations.

---

Lessons for Complex Toronto Renovations

1. Substrate assessment determines strategy. Basement ≠ mid-level ≠ upper-level. Each requires different acclimation, fastening, expansion management.

2. Radiant heat requires floating installation. Face-nailing fails with thermal cycling. This is non-negotiable, even if unconventional.

3. Custom stain development bridges species. Three different woods don't have to look like three separate projects. Proprietary stain can visually connect them.

4. Staircase = precision engineering. Custom treads, steel substrates, blind fasteners, 100% solids adhesive. Furniture-grade craftsmanship, not standard installation.

5. Test deflection after installation. Don't assume the staircase is solid. Measure it. Document the results.

6. Thermal ramp-up is critical for radiant floors. Gradual heating prevents shock and adhesion stress. Non-negotiable.

7. Documentation builds confidence. Provide customers with: moisture testing results, wood MC data, stain blend specifications, deflection measurements. Transparency turns complexity into confidence.

Done right, complex multi-level installations are showpieces. This project is proof.
